500 Litre Stainless Steel Water Tank
The Wonderpure 500 litre stainless steel water tank is a single-layer water storage tank designed for residential, commercial, institutional and other water-storage applications. It is available in SS 304, SS 316L and 2205 Duplex stainless steel grades and is offered in two configurations: Tall Model and Short Model.
Capacity: 500 Litres | Tall & Short Models | SS 304 / SS 316L / 2205 Duplex
500 Litre Stainless Steel Water Tank

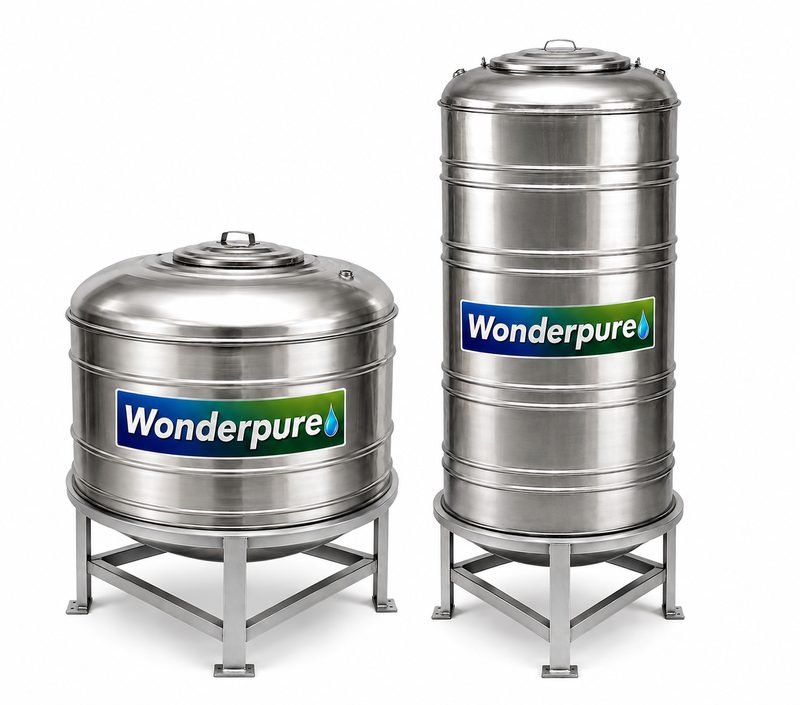

The Wonderpure 500 litre stainless steel water tank is a single-layer water storage tank available in two physical configurations, Tall Model and Short Model, to suit different installation footprints. The Tall Model has a 700 mm diameter and an overall height of 1850 mm including the 450 mm stand, while the Short Model has a 970 mm diameter and an overall height of 1250 mm including the 450 mm stand. Both configurations share the same 500 litre capacity and are available in SS 304, SS 316L and 2205 Duplex stainless steel grades, with sheet thickness options of 0.5 mm, 0.6 mm, 0.8 mm and 1.0 mm. Each tank is equipped with a 420 mm manhole and 1-inch connections for inlet, outlet, overflow, drain and air vent.
500 Litre Stainless Steel Water Tank Specifications
Tall Model — 700 mm Diameter
| Specification | Details |
|---|---|
| Tank Capacity | 500 Litres |
| Material / Grade | SS 304 / SS 316L / 2205 Duplex |
| Tank Type | Single-Layer |
| Tank Diameter | 700 mm |
| Overall Height | 1850 mm, including 450 mm stand |
| Stand Height | 450 mm |
| Stand | MS / SS 304 Grade |
| Sheet Thickness | 0.5 / 0.6 / 0.8 / 1.0 mm |
| Manhole Diameter | 420 mm |
| Inlet | 1 Inch |
| Outlet | 1 Inch |
| Overflow | 1 Inch |
| Drain | 1 Inch |
| Air Vent | 1 Inch |
Short Model — 970 mm Diameter
| Specification | Details |
|---|---|
| Tank Capacity | 500 Litres |
| Material / Grade | SS 304 / SS 316L / 2205 Duplex |
| Tank Type | Single-Layer |
| Tank Diameter | 970 mm |
| Overall Height | 1250 mm, including 450 mm stand |
| Stand Height | 450 mm |
| Stand | MS / SS 304 Grade |
| Sheet Thickness | 0.5 / 0.6 / 0.8 / 1.0 mm |
| Manhole Diameter | 420 mm |
| Inlet | 1 Inch |
| Outlet | 1 Inch |
| Overflow | 1 Inch |
| Drain | 1 Inch |
| Air Vent | 1 Inch |
500 Litre Tank — Tall Model vs Short Model
| Feature | Tall Model | Short Model |
|---|---|---|
| Capacity | 500 Litres | 500 Litres |
| Diameter | 700 mm | 970 mm |
| Overall Height | 1850 mm | 1250 mm |
| Stand Height | 450 mm | 450 mm |
The Tall Model and Short Model both offer the same 500 litre storage capacity but differ in diameter and overall height, allowing the tank to be selected based on the available installation space. The Tall Model has a smaller diameter and a taller overall height, while the Short Model has a larger diameter and a lower overall height. Both configurations are supplied on this same product page and can be selected according to the space and layout requirements of the installation.
Applications of the 500 Litre Stainless Steel Water Tank
Homes & Apartments
Suitable for residential water storage in individual homes, apartments, and residential buildings.
Commercial Buildings
Suitable for water storage requirements in offices, shops, commercial complexes, and other business premises.
Hospitals & Institutions
Can be used for water storage in hospitals, schools, colleges, and other institutional facilities.
Hotels & Hospitality
Suitable for water storage requirements in hotels, guest houses, restaurants, and hospitality properties.
Farmhouses & Agricultural Properties
Suitable for water storage at farmhouses, agricultural properties, and similar locations.
RO Plants & Water Treatment
Can be used as a water-storage tank in RO plants and water-treatment installations, subject to the specific system requirements.
Key Features of the 500 Litre Stainless Steel Water Tank
Stainless Steel Construction
Available in SS 304, SS 316L and 2205 Duplex stainless steel grades.
500 Litre Capacity
Designed for 500 litres of water storage for a range of residential, commercial and institutional requirements.
Single-Layer Design
A single-layer stainless steel tank designed for straightforward water-storage applications.
Two Dimensional Configurations
Available in Tall Model and Short Model configurations to suit different installation footprints, both offered on this single product page.
420 mm Manhole
A 420 mm manhole provides access to the tank interior for inspection and cleaning.
Multiple 1-Inch Connections
The tank is provided with 1-inch inlet, outlet, overflow, drain and air-vent connections.
Available 500 Litre Tank Configurations
The Wonderpure 500 litre stainless steel water tank is available in two physical configurations, Tall Model and Short Model, both offered under this single product page and URL. Customers can select the configuration that best suits their installation space and requirements at the time of enquiry. Separate product pages are not maintained for the Tall and Short configurations.
