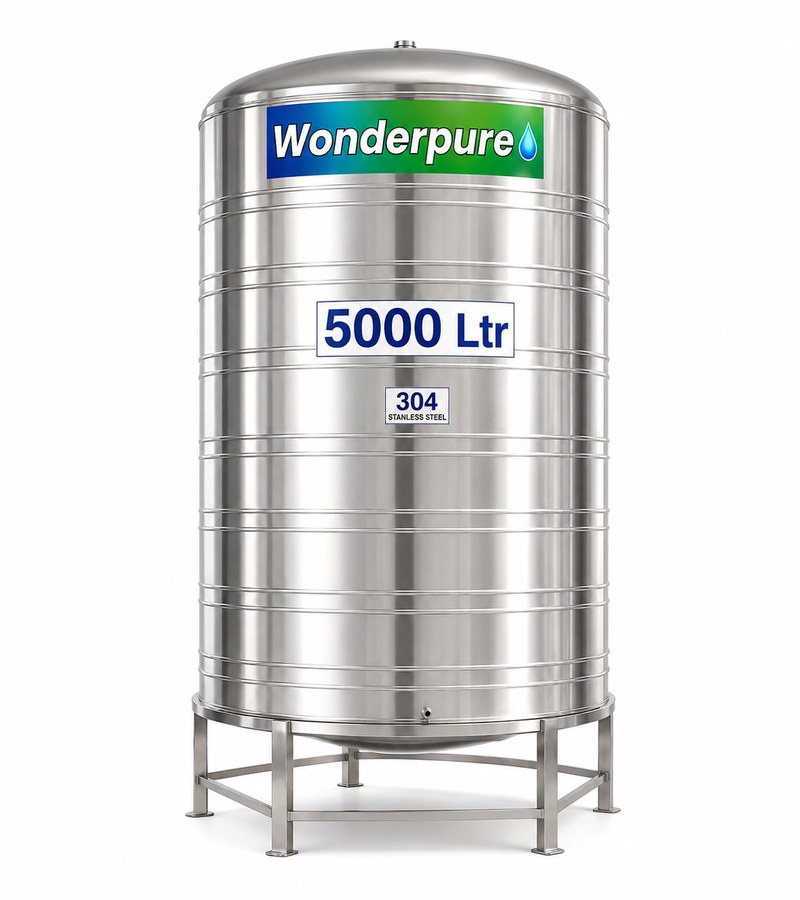

5000 Litre Stainless Steel Water Tank
Wonderpure 5000 litre stainless steel water tank is a single-layer water storage tank designed for residential, commercial, institutional and industrial applications. It is available in SS 304, SS 316L and 2205 Duplex stainless steel options, with a 1600 mm diameter and an overall height of 2950 mm including the 550 mm stand.
Capacity: 5000 Litres | Diameter: 1600 mm | Overall Height: 2950 mm
5000 Litre Stainless Steel Water Tank Specifications
| Specification | Details |
|---|---|
| Tank Capacity | 5000 Litres |
| Material / Grade | SS 304 / SS 316L / 2205 Duplex |
| Tank Type | Single-Layer |
| Tank Diameter | 1600 mm |
| Overall Height | 2950 mm, including 550 mm stand |
| Stand Height | 550 mm |
| Stand | MS / SS 304 Grade |
| Sheet Thickness | 0.8 / 1.0 mm |
| Manhole Diameter | 550 mm |
| Inlet | 2 Inch |
| Outlet | 2 Inch |
| Overflow | 2 Inch |
| Drain | 2 Inch |
| Air Vent | 1 Inch |
5000 Litre Stainless Steel Water Tank
The Wonderpure 5000 litre stainless steel water tank is a single-layer water storage solution designed for reliable storage of water in residential, commercial, institutional, and industrial settings. The tank has a 1600 mm diameter and an overall height of 2950 mm including the 550 mm stand, making it suitable for installations where a larger storage capacity and elevated storage configuration are required. It is available in SS 304, SS 316L, and 2205 Duplex stainless steel grades, with sheet thickness options of 0.8 mm and 1.0 mm. The tank is equipped with a 550 mm manhole, 2-inch inlet, outlet, overflow and drain connections, and a 1-inch air-vent connection.
Wonderpure 5000 litre tanks can be configured with an MS or SS 304 grade stand according to the selected specification. The tank is manufactured at Wonderpure's Faridabad facility and is supplied across India for applications including homes, apartments, commercial buildings, hospitals, institutions, and water-treatment installations.
Applications of the 5000 Litre Stainless Steel Water Tank
Homes & Apartments
Suitable for residential water storage in individual homes, apartments, and residential buildings.
Commercial Buildings
Suitable for water storage requirements in offices, shops, commercial complexes, and other business premises.
Hospitals & Institutions
Can be used for water storage in hospitals, schools, colleges, and other institutional facilities.
Hotels & Hospitality
Suitable for water storage requirements in hotels, guest houses, restaurants, and hospitality properties.
Farmhouses & Agricultural Properties
Suitable for water storage at farmhouses, agricultural properties, and similar locations.
RO Plants & Water Treatment
Can be used as a water-storage tank in RO plants and water-treatment installations, subject to the specific system requirements.
Key Features of the 5000 Litre Stainless Steel Water Tank
Stainless Steel Construction
Available in SS 304, SS 316L and 2205 Duplex stainless steel grades.
5000 Litre Capacity
Designed for 5000 litres of water storage for a range of residential, commercial and institutional requirements.
Single-Layer Design
A single-layer stainless steel tank designed for straightforward water-storage applications.
SS 304 / SS 316L / 2205 Duplex Options
Available in SS 304, SS 316L and 2205 Duplex stainless steel grades, depending on the selected specification.
550 mm Manhole
A 550 mm manhole provides access to the tank interior for inspection and cleaning.
2-Inch Inlet, Outlet, Overflow & Drain
The tank is provided with 2-inch inlet, outlet, overflow and drain connections.
1-Inch Air Vent
The tank includes a 1-inch air-vent connection.
0.8mm / 1.0mm Sheet Thickness Options
Available with 0.8 mm and 1.0 mm sheet thickness options depending on the selected specification.
